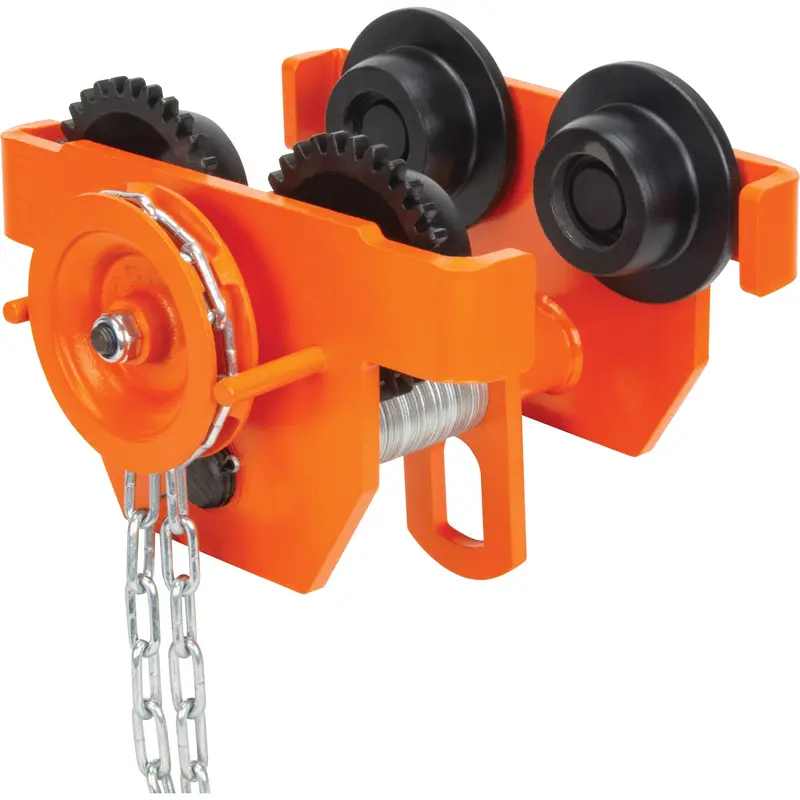

5-Ton Adjustable Beam Trolley with Integrated Safety Plates – Fits Beams 4-7/8″ to 6-7/8″

Description

• Easily adjusts to fit various flanges, I-beams and H-beams
• Use on straight or curved track
• Can be installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
• Safety plate included
• Geared trolleys include two geared wheels operated by hand chain
• Meets ANSI B30.11
• Capacity: 10000 lbs. (5 tons)
• I-Beam Flange Width: 4-14/16″ – 6-7/8″
• Manufacturer’s Warranty: 1 Year Limited
• Net Weight: 74.97 lbs.
• A: 13-9/16″
• B: 14-1/8″
• C: 14-1/8″
• E: 13/16″
• H: 7-3/16″
